Download Rakour LiFePO4 Battery Technical Datasheets
Access certified technical datasheets for the complete Rakour LiFePO4 battery lineup — high voltage rack systems, low voltage rackable units, and ground or wall-mount models. Each datasheet covers full electrical specifications, system energy capacity, BMS communication protocols, protection ratings, certifications, and warranty terms. Use these documents to verify inverter compatibility, site requirements, and compliance before purchase or installation.
Download Datasheets by Model
RAKOUR-HV Rackable 51.2V200AH 10.2KW Datasheet
PreviewRAKOUR-LV Rackable 100AH5.12KW 200AH10.2KW 314AH16KW Datasheet
PreviewRAKOUR-LV Wall Mounted NSTLV-51.2v 200ah 10.2KW Datasheet
PreviewRAKOUR-LV Ground Wheel NSTLV-280AH14.3KW 314AH16KW Datasheet
PreviewRAKOUR-HV Rackable 51.2V314Ah With Deye Inverters Datasheet
PreviewRAKOUR-HV Rackable 51.2V314AH 16KW Datasheet
PreviewHigh Voltage (HV) Rackable Series — Technical Datasheets
Rakour's HV rackable series are modular high-voltage LiFePO4 systems built for high-power residential and commercial energy storage applications. Each system pairs multiple 51.2V battery modules in series with a BCU to reach high operating voltages. Datasheets include full system-level electrical parameters across all module count configurations, module-level dimensions and weight, BMS communication protocol, and applicable certifications.
51.2V 100Ah-HV Datasheet
Each 51.2V 100Ah-HV module delivers 5.12kWh of energy. Configured in series from 4 to 10 modules, the system reaches a nominal voltage of 204.8V to 512V with a total capacity of 20.48kWh to 51.2kWh. Maximum discharge current is 50A with natural cooling. Protection level is IP21. Communication via CAN/RS485. Certified to UN38.3, MSDS, CE, and ROHS. Module dimensions: 355×567×830mm (W×D×H). 5+5 year warranty.
51.2V 200Ah-HV Datasheet
The 51.2V 200Ah-HV supports 4 to 17 battery modules in series, scaling from 204.8V / 40.96kWh to 512V / 102.4kWh per set, with up to 4 sets in parallel for maximum deployments exceeding 400kWh. Maximum discharge current is 100A. Individual module weight is 77kg (dimensions: 396×575×248mm). Communication ports include CAN, RS485, and built-in WIFI. Certified to CE, MSDS, and UN38.3. Cycle life ≥6,000 times. 5-year warranty.
51.2V 314Ah-HV Datasheet
The highest-capacity HV module in the Rakour range. Supports 5 to 14 modules in series, spanning HV-80K (80.38kWh / 256V) through HV-225K (225.08kWh / 716.8V). Maximum discharge current is 200A with active fan cooling and porous sheet metal heat dissipation. Individual module weight is 112kg (dimensions: 771×550×200mm). Built-in soft-start circuit for inverters lacking this feature. CAN, RS485, and WIFI communication. Certified to CE, MSDS, and UN38.3. Cycle life ≥8,000 times. 5-year warranty.

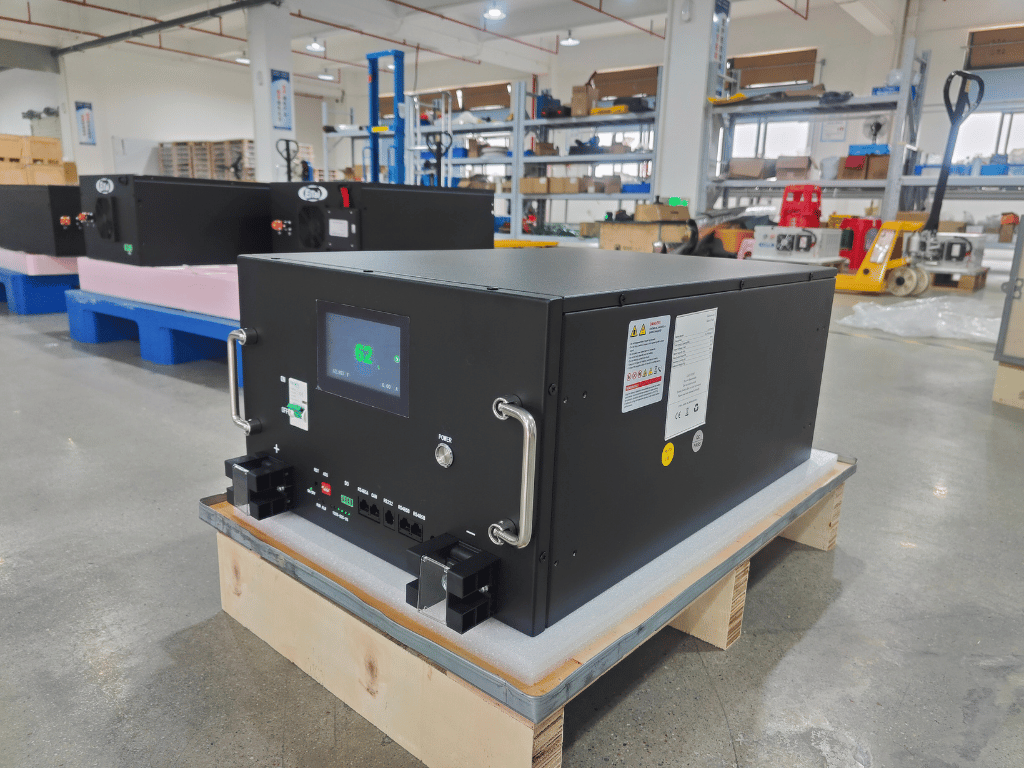

Low Voltage (LV) Rackable Series — Technical Datasheets
The Rakour LV rackable series covers four capacity variants at 51.2V nominal voltage, designed for low-voltage solar inverter applications in residential and light commercial installations. All models support parallel deployment of up to 15 units, with CAN, RS485, and RS232 communication ports for flexible inverter integration. Datasheets include full electrical parameters, physical dimensions, protection ratings, and certification details.
51.2V 100Ah-LV Datasheet
Nominal capacity: 100Ah. Total energy: 5.12kWh (usable 90% DOD: 4.61kWh). Maximum discharge current: 80A. Maximum power: 4,096W. Net weight: 42.5kg. Dimensions: 567×355×150mm. IP20 protection level. Supports up to 15 parallel units. Certified to CE, ROHS, MSDS, and UN38.3. Cycle life ≥6,000 times. Operating temperature: -20°C to 60°C (discharge) / 0°C to 60°C (charge). 5-year warranty.
51.2V 200Ah / 280Ah / 314Ah-LV Datasheets
The 200Ah delivers 10.24kWh (max current 120A, weight 77kg); the 280Ah delivers 14.34kWh (max current 200A, weight 102.2kg); the 314Ah delivers 16.08kWh (max current 200A, weight 105.4kg). All three models share the same 51.2V nominal voltage, 57.6V charge voltage, and 46.4V end voltage. Cycle life ranges from ≥6,000 times (200Ah) to ≥11,000 times (314Ah). Certifications: CE, ROHS, MSDS, UN38.3, with IEC62619 on 200Ah and 314Ah models. 5-year warranty across the range.

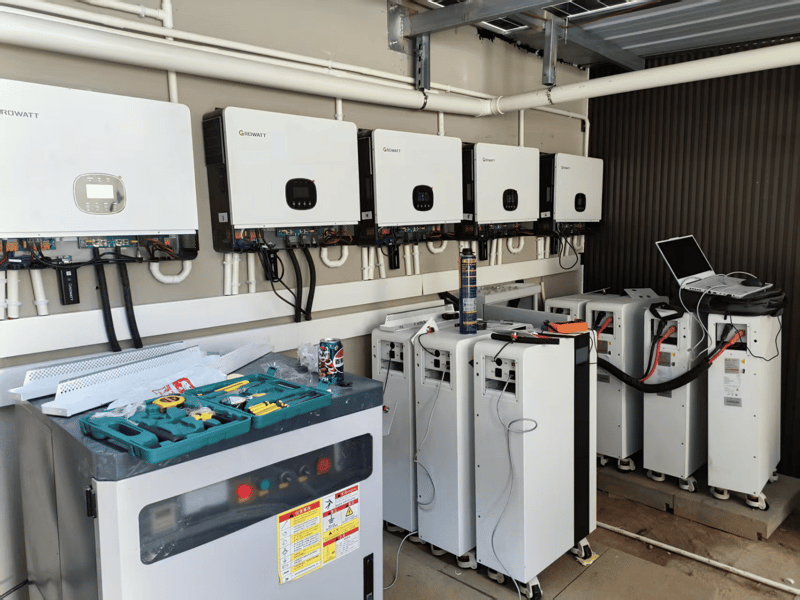

Ground-Mount & Wall-Mount (NSTLV) Series — Technical Datasheets
The NSTLV series offers a robust alternative form factor for installations where rack-mounting is impractical. Available in 10.2kWh, 14.3kWh, and 16kWh capacities, these units stand as freestanding ground-mount systems with optional universal wheels, or as wall-mounted units (NSTLV-10.2K). The upgrade to IP54 protection over the LV rackable series makes the NSTLV range suitable for garage, utility room, or semi-sheltered outdoor enclosure installations.
NSTLV-10.2K Datasheet (200Ah / 10.24kWh)
Nominal voltage: 51.2V. Capacity: 200Ah. Total energy: 10.24kWh (usable 90% DOD: 9.22kWh). Maximum current: 120A. Maximum power: 6,144W. Net weight: 95.0kg. Dimensions: 519×204×712mm. IP54 protection. Supports wall-mount or ground installation with optional universal wheels. Certified to UN38.3, CE, ROHS, and IEC62619. Cycle life ≥6,000 times. Communication: CAN, RS485, RS232. 5-year warranty.
NSTLV-14.3K Datasheet (280Ah / 14.34kWh)
Nominal voltage: 51.2V. Capacity: 280Ah. Total energy: 14.34kWh (usable 90% DOD: 12.90kWh). Maximum current: 200A. Maximum power: 10,240W. Net weight: 125.3kg. Dimensions: 519×204×854mm. IP54 rated for semi-protected environments. Ground installation with optional castor wheels. Certified to UN38.3, CE, and ROHS. Cycle life ≥10,000 times. Communication: CAN, RS485, RS232. 5-year warranty.
NSTLV-16K Datasheet (314Ah / 16.08kWh)
The highest-capacity NSTLV model. Nominal voltage: 51.2V. Capacity: 314Ah. Total energy: 16.08kWh (usable 90% DOD: 14.47kWh). Maximum current: 200A. Maximum power: 10,240W. Net weight: 127.3kg. Dimensions: 519×204×854mm. IP54 protection. Up to 15 units in parallel for systems scaling to 241kWh. Certified to UN38.3, CE, ROHS, and IEC62619. Cycle life ≥11,000 times — the longest lifespan in the Rakour LV lineup. 5-year warranty.
Frequently Asked Questions About Rakour Datasheets
Which datasheet do I need to confirm inverter compatibility?
For low-voltage inverters, download the LV or NSTLV series datasheet and verify that the battery's nominal voltage (51.2V) and maximum current are within your inverter's battery input specification. For high-voltage inverters, use the HV series datasheet and match the system nominal voltage at your chosen module count against your inverter's HV battery input range — for example, 307.2V for 6-module 200Ah-HV.
Are Rakour datasheets suitable for permitting and grid connection applications?
Yes. Rakour datasheets include all parameters typically required for solar permitting, utility interconnection applications, and installer compliance documentation — nominal voltage, total energy, DOD, maximum current, protection level, operating temperature, and certifications (CE, UN38.3, IEC62619). If your jurisdiction requires additional documentation such as MSDS or test reports, contact Rakour's technical team directly.
Why does the 314Ah-HV datasheet show a lower cycle life than the 314Ah-LV model?
The 51.2V 314Ah-HV is rated at ≥8,000 cycle life, while the 51.2V 314Ah-LV rackable model achieves ≥11,000 cycles and the NSTLV-16K also reaches ≥11,000 cycles. The difference reflects cell chemistry optimization and BMS configuration specific to each form factor. For applications where maximizing cycle longevity is the primary requirement, the LV or NSTLV 314Ah models offer a longer service life at comparable capacity.
Can I request a datasheet for a custom or OEM configuration?
Yes. Rakour supports OEM and ODM configurations across the HV and LV product lines. Custom datasheets for modified specifications — including voltage, capacity, enclosure type, or certification scope — are available upon request. Contact the team below with your project requirements, and an engineer will respond within one business day.
Request a Datasheet or Speak to Our Technical Team
If the datasheet you need is not listed above, or if you require additional technical documentation — such as MSDS sheets, IEC62619 test reports, or OEM specification sheets — submit a request through the contact form below. Include your target model, application type (residential, commercial, or utility), and country of installation so we can ensure you receive the correct certification documentation for your market.
