Download Center
Everything you need to install, configure, and optimize your Rakour home energy storage system. Download official installation manuals, detailed technical datasheets, and the verified inverter compatibility list — all authored by Rakour's engineering team and updated with every product revision.
Access step-by-step installation guides for the complete Rakour battery lineup. Each manual covers mechanical mounting, power cable wiring, BMS communication port setup (CAN/RS485), dip-switch address configuration, and parallel connection rules for multi-unit deployments. All documents comply with CE, UN38.3, and IEC62619 safety standards and are written for both residential installers and commercial integrators.
Covers 51.2V 100Ah, 200Ah, and 314Ah high-voltage rack-mount models. Guides include CAN/RS485 RJ45 pin-out diagrams, BMS address setup, Deye inverter pairing instructions, and required safety labels. Suitable for large residential and C&I deployments requiring scalable high-voltage battery strings up to 225kWh.
For 51.2V rackable LV models from 100Ah to 314Ah. Step-by-step parallel wiring for up to 15 units, dip-switch BMS addressing, RS485-2 internal communication setup, and ventilation spacing requirements. Includes cabinet installation options and stack-mounting sheet metal assembly instructions for flexible deployment configurations.
Dedicated guide for the NSTLV 51.2V 200Ah wall-mount battery. Covers wall bracket mounting, load-bearing structural requirements, indoor ventilation clearances, and a pre-installation safety checklist. Designed for compact residential installations where floor space is limited and discreet integration is required.
Download certified technical datasheets for every Rakour LiFePO4 battery model. Each sheet provides nominal voltage, energy capacity (kWh), maximum charge/discharge current, cycle life, BMS communication protocols, protection ratings, operating temperature range, and applicable certifications. Use datasheets to verify compatibility with your inverter, grid requirements, and site specifications before purchase.
51.2V 100Ah, 200Ah, and 314Ah-HV rackable batteries. Scalable from 20.48kWh to 225.08kWh per string, supporting up to 4 parallel sets. Maximum discharge current 200A. IP20 rated, ≥6,000 cycle life (314Ah: ≥11,000 cycles), CE, UN38.3 certified. Fan cooling on 314Ah model.
100Ah (5.12kWh), 200Ah (10.24kWh), 280Ah (14.34kWh), and 314Ah (16.08kWh) models. 51.2V nominal, up to 15 units in parallel, CAN/RS485/RS232 communication, 5-year warranty, IP20 protection level. CE, ROHS, MSDS, and UN38.3 certifications across the full LV lineup.
Rakour NSTLV 200Ah, 280Ah, and 314Ah ground-wheel models with IP54 weatherproof rating and ≥10,000 cycle life. Wall-mount 51.2V 200Ah offers compact indoor installation. All models include CAN/RS485/RS232 ports and carry CE, ROHS, and IEC62619 safety certifications with a 5-year warranty.
Rakour LiFePO4 batteries are pre-tested with leading solar inverter brands via CAN and RS485 BMS communication protocols. Download the full compatibility list to confirm your inverter is supported before installation. Proper inverter pairing ensures optimal charge/discharge management, prevents overcurrent faults, and maximizes battery cycle life across residential and commercial energy storage applications.
Verified compatibility includes Deye, Growatt, Solis, Victron Energy, SMA, Goodwe, and other major inverter manufacturers. Supports single-inverter setups and multi-string configurations for both residential solar-plus-storage and commercial C&I energy storage systems. Compatibility is verified at the BMS communication protocol level.
Rakour BMS uses CAN or RS485 (RJ45 interface) to communicate charge voltage limits, discharge current thresholds, and SOC data to the inverter. Full pin-out tables for all RJ45 ports and dip-switch BMS master/slave address configuration are included in each installation manual.
Match your inverter's battery input voltage range to your Rakour system nominal voltage (51.2V per module or stacked HV string). Verify the inverter supports lithium battery mode (LFP BMS protocol). Use Rakour's system sizing guide and ROI calculator under Resources to calculate required capacity and inverter power rating.

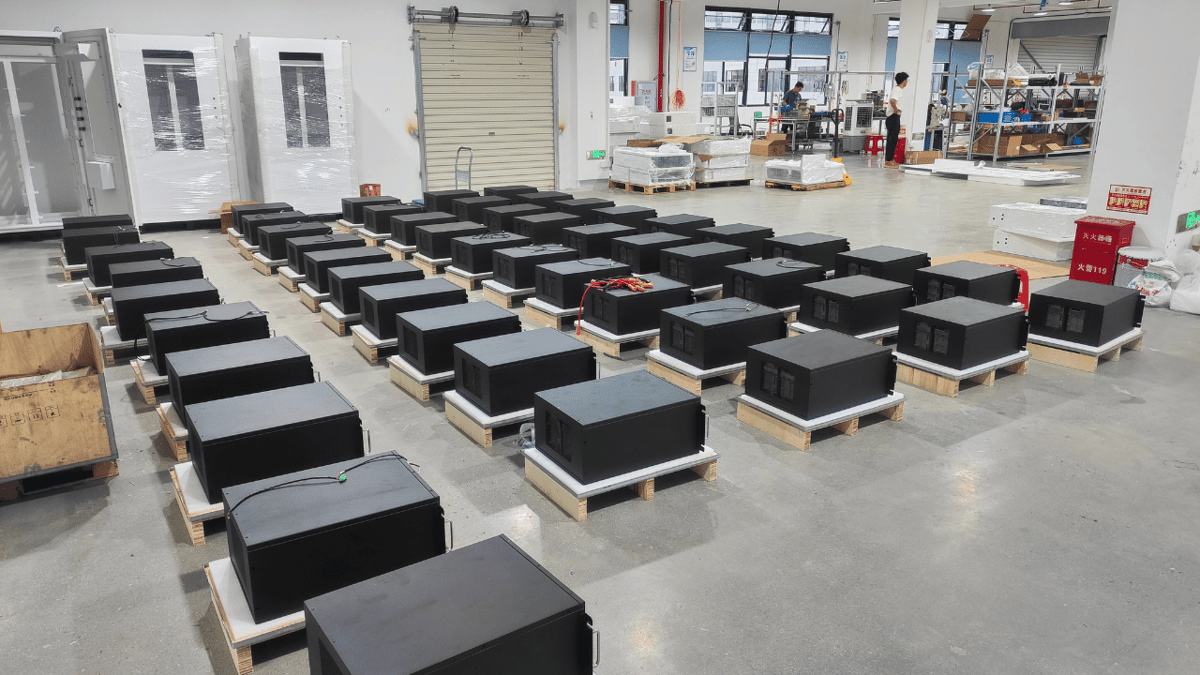

All Rakour manuals and datasheets are authored by the engineering team at Xiamen Rakour Technology Co., Ltd., a specialist LiFePO4 battery manufacturer with production facilities in Xiamen, China. Every document reflects factory-tested configurations and is version-controlled to align with current hardware and firmware releases. Certifications across the range include CE, UN38.3, IEC62619, ROHS, and MSDS — independently verified for global markets.
Rakour batteries and documentation meet international safety standards including CE (Europe), UN38.3 (transport), IEC62619 (stationary storage), and ROHS. Certification details are included in each product datasheet for distributor and end-user compliance verification.
Every manual carries a version number (e.g., V1.0, V1.2) and is updated when hardware or firmware changes occur. Bookmark this page to access the latest documentation for your Rakour battery model and avoid installation errors from outdated guides.
Identify your model by series (HV or LV), form factor (rackable, ground-wheel, or wall-mounted), and capacity (Ah). HV models include the 51.2V 100Ah, 200Ah, and 314Ah. LV rackable models range from 100Ah to 314Ah. Ground and wall-mount models are in the NSTLV series. Each download section above is organized by series for easy identification.
Download the full Inverter Compatibility List and check your inverter brand and model. Rakour supports CAN and RS485 BMS protocols. Your inverter must support lithium (LFP) battery mode and accept the battery voltage range of your selected Rakour model. Contact our technical team if your inverter is not listed.
Yes. All Rakour LV series batteries support up to 15 units in parallel, and HV series support up to 4 sets. Voltage difference between parallel units must be within 1V before connection. Full parallel wiring diagrams and BMS master/slave address setup instructions are included in the respective installation manuals.

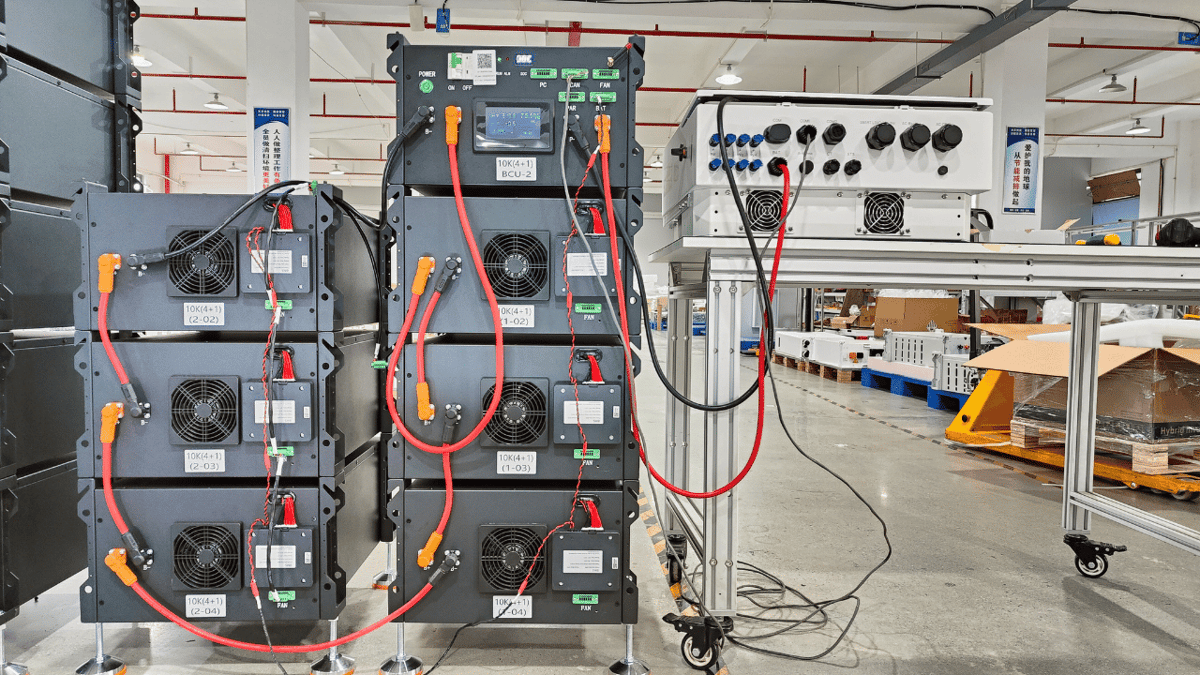

Can't find the document you need, or have a question about installation, system sizing, or inverter pairing? Rakour's technical team is available to assist. Submit your inquiry through the contact form below and include your battery model, inverter brand, and application type. Our engineers typically respond within one business day to support installers, distributors, and end users globally.
