1: Why Inverter Compatibility Is the Most Overlooked Risk in C&I BESS Projects
The Hidden Failure Point Most Buyers Miss
If you're new to C&I battery systems, start with our [C&I BESS buyer's guide] before diving into inverter compatibility.Most C&I solar battery storage project failures trace back not to battery quality, but to inverter incompatibility. A mismatched system typically shows incorrect SOC readings, disabled remote monitoring, and failed charge/discharge protection — all while the hardware appears physically connected.
What "Compatible" Actually Means
Compatibility goes beyond voltage matching. The battery inverter must recognize the battery's BMS protocol, accept its charge/discharge commands, and correctly display real-time data. Without verified firmware alignment, a system rated at 100 kWh may only deliver 60–70% of its designed performance.
Why C&I Systems Are More Vulnerable
At 80–250 kWh scale, errors compound. A single protocol mismatch across a 4-cabinet parallel RAKOUR setup can trigger cascade shutdowns across the entire rack. Getting compatibility right before procurement is the most cost-effective decision a C&I buyer can make.See how inverter choice affects your [C&I BESS cost and ROI].
2: The HV BESS Voltage Stack Explained: 100V–1500V DC Range and What It Means for Inverter Selection
How RAKOUR Builds Its Voltage Stack
RAKOUR's high voltage battery systems stack 51.2V modules in series via the BCU (Battery Control Unit). The 51.2V200Ah-HV supports 4–17 modules, producing an operating range of 185.6V–980V DC. The 51.2V314Ah-HV delivers up to 225kWh at 716.8V nominal with 14 modules.
Matching DC Input Range to Inverter Specs
Before selecting an inverter, learn [how to size a high-voltage BESS] for your facility.Your inverter's DC input window must fully contain the battery's working voltage range. For a 10-module RAKOUR 314Ah system (512V nominal, 464–576V working range), the inverter must accept the full 464–576V window — not just the nominal 512V figure.
Why Nominal Voltage Misleads Buyers
Many buyers match nominal voltage only, ignoring the working range spread. A RAKOUR 8-module 200Ah system operates between 371.2V–460.8V. An inverter rated "400V DC input" may clip at high SOC. Always verify the inverter's maximum DC input voltage against the battery's peak charge voltage.

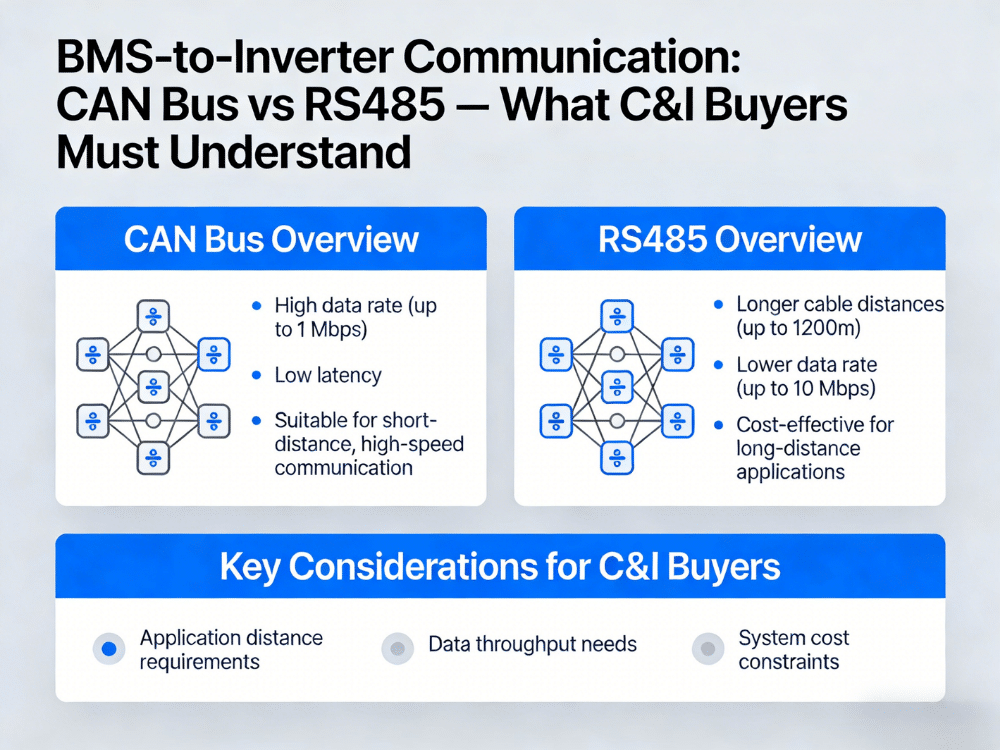

3: BMS-to-Inverter Communication: CAN Bus vs RS485 — What C&I Buyers Must Understand
Two Protocols, Very Different Behaviors
CAN bus provides real-time, bidirectional, millisecond-level communication — the preferred protocol for RAKOUR's battery management system. RS485 is half-duplex and suited for longer cable runs up to 1.2 km. RAKOUR HV batteries support both CAN and RS485 via dedicated RJ45 ports on the BCU.
Why "Has a CAN Port" Is Not Enough
Each inverter brand implements CAN differently. Deye uses its BMS1 port with a specific CAN pinout (CANH on pin 4, CANL on pin 5). Connecting RAKOUR's BCU CAN port to an inverter using a mismatched pin map results in no communication — even though both devices technically "support CAN."
DIP Switches and Firmware: The Two Variables Buyers Forget
RAKOUR's BCU must be set to the correct communication protocol matching the connected inverter. Incorrect DIP switch positions or outdated inverter firmware are the top causes of BMS communication failure in multi-cabinet energy storage systems deployments. Always confirm firmware version before commissioning.
4: The C&I Inverter Compatibility Matrix: Deye, Growatt, Sofar, SMA, GoodWe, Solis and More
RAKOUR's Verified Inverter Compatibility
RAKOUR HV batteries (51.2V200Ah-HV and 51.2V314Ah-HV) are factory-tested with Deye SUN29.9K–50K and SUN80K series, with full CAN communication verified. The deye inverter setup requires "Parallel bat1&bat2" mode enabled in the battery setup menu when using a single RAKOUR battery set across dual BAT ports.
Power Limits by Inverter Model
Deye 29.9K–50K models cap single-string current at 50A. Since RAKOUR 314Ah modules support 100A+ discharge, RAKOUR recommends parallel shunting — connecting one battery set to both BAT1 and BAT2 ports — to unlock full power while staying within inverter current limits.
What to Confirm Before Ordering
Before finalizing inverter selection, verify: DC input voltage window covers your RAKOUR configuration's working range; CAN/RS485 port pinout matches RAKOUR BCU; maximum charge/discharge current per string; and whether the inverter supports three phase inverter battery parallel operation for larger C&I installations.For a full pre-purchase framework, refer to our [C&I BESS buyer's complete guide].

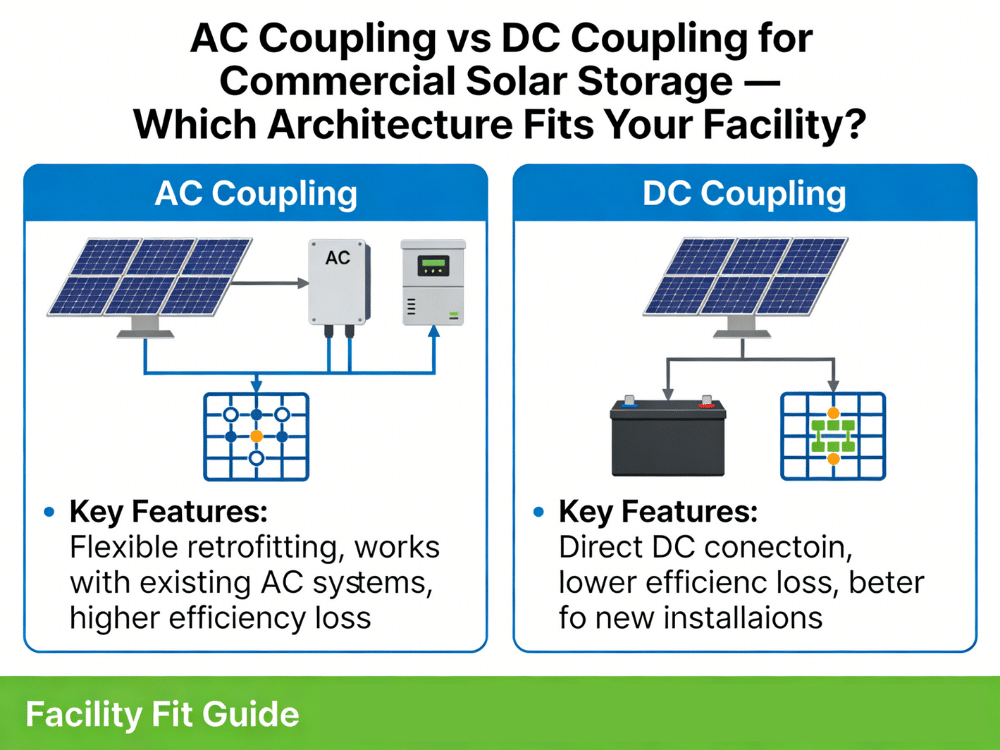

5: AC Coupling vs DC Coupling for Commercial Solar Storage — Which Architecture Fits Your Facility?
The Core Efficiency Trade-Off
DC coupling connects PV and the RAKOUR battery inverter on the same DC bus, avoiding an extra conversion step. This delivers 2–5% higher round-trip efficiency. AC coupling adds PV inverter → grid → storage inverter conversion losses but allows retrofitting existing PV systems without rewiring.
When DC Coupling Makes Sense for 80–250 kWh Systems
For new-build facilities deploying RAKOUR HV batteries alongside a PV array, DC coupling maximizes self-consumption efficiency. The Deye 80K SG02HP3 supports DC-coupled configurations where PV MPPT and battery DC input share the same bus, reducing clipping losses ac vs dc coupled scenarios common in oversized PV arrays.
When AC Coupling Is the Better Choice
AC coupled battery storage is the right answer when a facility already has an operational grid-tied PV inverter and needs to add storage. RAKOUR batteries can be added via an AC-coupled inverter without disturbing the existing PV system.Explore RAKOUR's [industrial and commercial energy storage solutions] for brownfield site configurations. This is the most cost-effective upgrade path for brownfield C&I sites.
6: On-Grid, Off-Grid, and Hybrid BESS Operating Modes — How Each Mode Shapes Inverter Requirements
On-Grid Mode: Grid Synchronization and Anti-Islanding
In on-grid mode, RAKOUR energy storage systems synchronize with grid frequency and voltage through the inverter. The inverter must support anti-islanding protection to disconnect automatically during grid failure. Deye and Growatt both carry certified anti-islanding functions compatible with RAKOUR's CAN-based control signals.
Off-Grid Mode: The Inverter Must Be Grid-Forming
Off-grid operation requires the inverter to generate its own voltage and frequency reference — grid-forming capability. Not all hybrid solar inverters support this. RAKOUR 314Ah-HV's soft-start circuit compensates for inverters without native soft-start, reducing inrush current during island mode transitions.
Hybrid Mode: Where Most C&I Buyers Land
Hybrid mode blends grid connection, solar battery storage, and backup autonomy. See how RAKOUR's [C&I energy storage solutions] are configured for hybrid mode deployments. The inverter manages priority sequencing: PV first, battery second, grid third. RAKOUR's built-in WIFI module enables remote monitoring of mode transitions, SOC, and alarm states — essential for facilities managing peak-shaving schedules across multiple operating modes.
7: What Is a BMS and Why It's the Real Arbiter of Inverter Compatibility
What RAKOUR's BMS Actually Does
RAKOUR uses a two-tier battery management system: a slave BMS inside each module collects cell voltage and temperature, then reports upward to the master BMS in the BCU via internal CAN. The BCU master BMS controls charging voltage/current and discharge voltage/current commands sent to the inverter.
Why BMS Quality Determines System Performance
A weak BMS sends imprecise SOC data, causing the inverter to over-charge or under-utilize the battery. RAKOUR's BCU BMS provides real-time voltage, current, and temperature data with over-charge, over-discharge, over-current, and high/low temperature protection — giving the inverter accurate parameters to manage every cycle.
The Firmware Dependency Buyers Overlook
RAKOUR BCU firmware must be version-matched to the connected inverter's expected BMS protocol frame. When RAKOUR validates a new inverter brand, firmware is updated to map the correct message IDs. Using a BCU with older firmware against a newer inverter build is a leading cause of SOC display errors in commissioned battery inverter systems.
8: How an EMS Controls Charge/Discharge Cycles to Maximize Savings — And What Inverter Features Enable It
EMS as the System Brain
An Energy Management System sits above the inverter and battery management system, scheduling charge/discharge based on TOU tariffs, load forecasts, and PV generation data. RAKOUR's WIFI-enabled BCU exposes real-time SOC and power data to external EMS platforms via standard communication interfaces.
Inverter Features That EMS Strategies Depend On
For peak-shaving to work, the inverter must accept external power setpoint commands — typically via Modbus TCP or the inverter's own scheduling interface. Deye's 80K series supports time-of-use programming that integrates directly with RAKOUR's energy storage systems output parameters, enabling automated charge windows during off-peak grid hours. Learn how this translates to savings in our guide to [peak shaving and demand charge reduction].
What Happens Without Proper EMS-Inverter Integration
Without inverter-level EMS support, operators must manually schedule charge/discharge windows. In a 250 kWh RAKOUR deployment with peak-shaving as the primary use case, manual scheduling typically captures only 60–70% of potential demand charge savings compared to automated EMS-controlled dispatch.
9: Common HV BESS + Inverter Integration Errors and How to Diagnose Them
The Top Four Field Errors RAKOUR Installers Encounter
The most frequent integration failures are: (1) CAN cable pinout mismatch between BCU and inverter BMS port; (2) inverter not set to Lithium mode — must select "LI" before battery inverter communication activates; (3) parallel batteries with voltage difference exceeding 1V, triggering BCU protection; (4) current exceeding inverter's per-string limit causing inverter fault, not battery fault.
Diagnosing Communication Failures
If the inverter shows "battery not detected," first verify the BCU is powered on before the inverter — RAKOUR's startup sequence requires battery power-on first. Check CAN cable continuity on pins 4 (CANH) and 5 (CANL). Confirm the inverter firmware recognizes RAKOUR's BMS protocol frame. Most communication faults resolve at this stage without hardware replacement.
Temperature and Over-Current Protections
RAKOUR's battery management system cuts discharge below −20°C and stops charging below 0°C. If the inverter reports battery fault during cold startup, check ambient temperature first. Over-current protection activates at 100A (200Ah-HV) or 200A (314Ah-HV). Size inverter current limits below these thresholds to prevent nuisance tripping.
10: How to Build Your Inverter Compatibility Checklist Before Purchasing a C&I BESS
Step 1–3: Voltage, Protocol, and Mode Confirmation
If you haven't confirmed your system capacity yet, start with our [high-voltage BESS sizing guide]. Confirm the inverter's DC input range fully covers your RAKOUR configuration's working voltage (e.g., 464–576V for a 10-module 314Ah-HV). Verify CAN or RS485 pinout matches RAKOUR BCU port. Confirm the inverter supports your required operating mode — on-grid, off-grid, or hybrid — before reviewing solar battery storage system pricing.
Step 4–6: Current, Certification, and Firmware
Verify the inverter's maximum charge/discharge current per string against RAKOUR's 100A or 200A module limits. Confirm inverter CE certification and grid-code compliance for your market. Request the inverter's current firmware version and cross-check against RAKOUR's tested firmware compatibility list before placing a purchase order.
Step 7: EMS Interface and Parallel Scalability
Confirm Modbus TCP or equivalent EMS interface is available on the inverter for external dispatch control. If scaling beyond a single battery inverter cabinet, verify the inverter supports parallel RAKOUR strings up to the maximum 4-set parallel configuration. Document all confirmed parameters in writing before signing a procurement contract.
Industry And Commercial Energy Storage Solutions
Residential Energy Storage Solutions
Frequently Asked Questions About HV Battery Inverter Compatibility
Have questions about C&I solar battery storage inverter compatibility? Find clear answers here.
What voltage range does RAKOUR's HV battery system support for inverter compatibility?
Does RAKOUR support both CAN bus and RS485 communication with inverters?
Is RAKOUR compatible with Deye 80K three-phase inverters for C&I projects?
Can RAKOUR batteries operate in off-grid mode with hybrid inverters?
How many RAKOUR HV battery sets can be connected in parallel?
